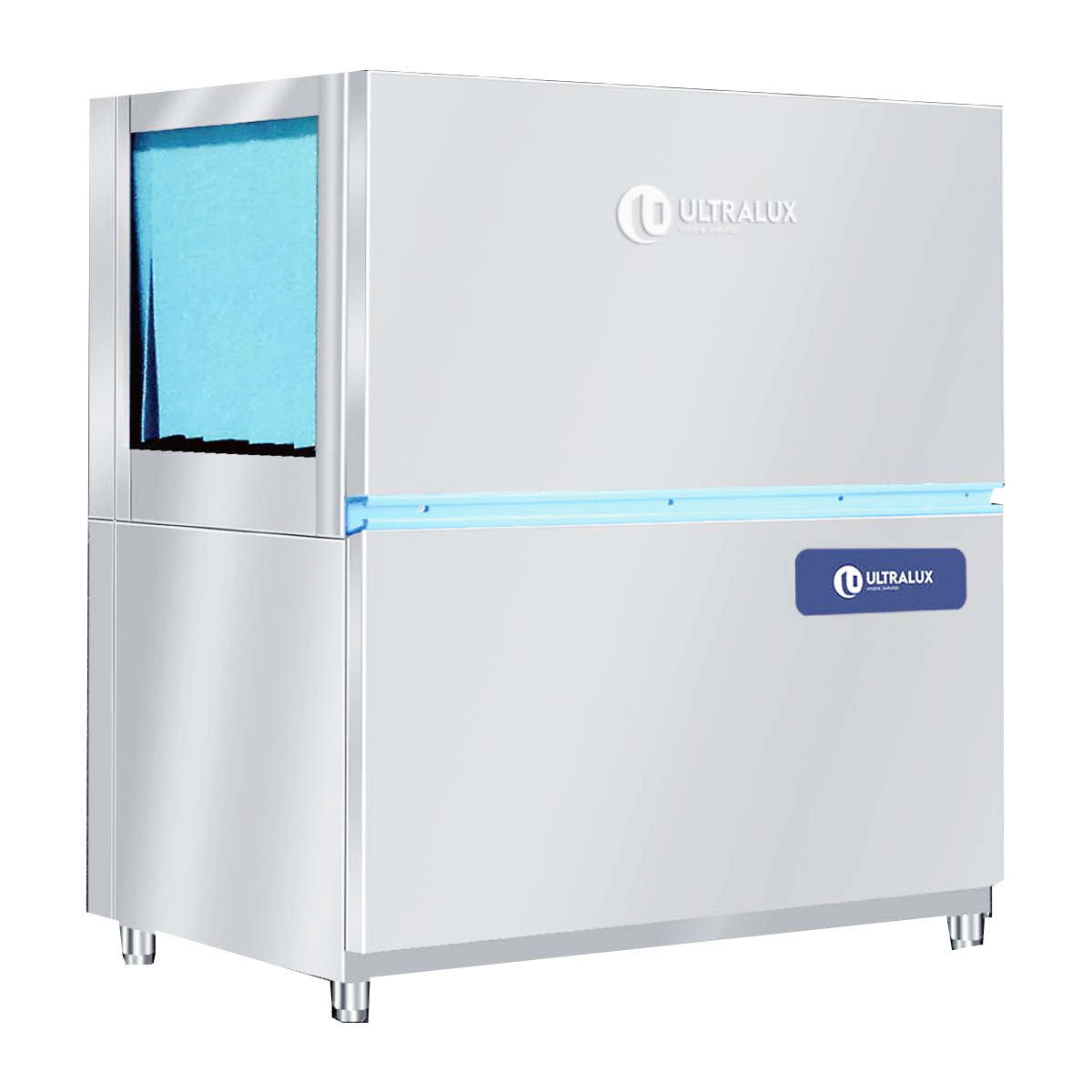

Rack Conveyor Dishwashing Machine Built for Demanding Kitchens
In fast-paced commercial kitchens, hygiene and speed go hand in hand, and nothing delivers both quite like a high-performance rack conveyor dishwashing machine. Designed for continuous operation, this advanced system streamlines the cleaning of hundreds of dishes, trays, and utensils per hour, without sacrificing cleanliness or energy efficiency.
Whether you’re operating a large-scale cafeteria, hospital kitchen, or high-volume restaurant, the rack conveyor dishwashing machine is engineered to maximize throughput while reducing water and detergent waste. Its modular design allows seamless integration into your current layout, while intuitive controls make it easy for staff to operate with minimal training. Plus, built-in heat recovery systems help reduce overall utility costs, aligning performance with sustainability.
What sets this machine apart is not just speed, but consistency, every dish, every cycle, spotless and sanitized to the highest food safety standards. And for kitchens needing an even more robust solution, consider upgrading to our premium Rack Conveyor Dishwasher, offering enhanced automation and intelligent diagnostics for greater efficiency and uptime.
Built for resilience, optimized for workflow! This is the smart investment your kitchen deserves.
Want to transform your back-of-house operations? Let’s talk efficiency. Contact us today.
ADVANTAGES AND CHARACTERISTICS
- Double layer construction for front door, low noise, better heat insulation
effect. - The built-in booster and equipped with protective devices, which ensure
the stability of water pressure. - The self-cleaning function of the machine keeps the better sanitation and
cleanliness. - PLC control, the temperature can be set by customer.
- 420mm of the washing height is more convenient for washing the large
bowls and dishes. - A key to restore.
OPTIONAL ACCESSORIES
- Stainless steel working table
- Washing rack
- Stainless steel shower
- Detergent Dispenser
Optional Function
- Heat Recovery System（R)
- Touch Screen
| CSB180C | CSB200C | CSB220C | CSB260C | CSB1H180C | CSB1H200 | CSB1H220C | CSB1H260 | |
|---|---|---|---|---|---|---|---|---|
|
Heating Mode |
Electrical, Steam |
Electrical, Steam |
Electrical, Steam |
Electrical, Steam |
Electrical, Steam |
Electrical, Steam |
Electrical, Steam |
Electrical, Steam |
|
External Dimension (mm) |
1100*750*1450 (Electrical)
1100*770*1800 (Steam) |
1550*860*1423 (Electrical)
|
1100*750*1450 (Electrical)
1100*770*1800 (Steam) |
2350*860*1423 (Electrical) |
2100*750*1950 (Electrical)
2100*770*1950 (Steam) |
2600*860*1950 (Electrical) |
2600*750*1950 (Electrical)
2600*770*1950 (Steam) |
3400*860*1950 (Electrical)
|
|
Weight |
220 kg |
280 kg |
320 kg |
380kg |
340 kg |
450kg |
480kg |
550kg |
|
Passing Width (mm) |
505 |
505 |
505 |
505 |
505 |
505 |
505 |
505 |
|
Max Washing Capacity (D/H) |
180 Rack/ Hour |
200 Rack/ Hour |
220 Rack/ Hour |
260 Rack/ Hour |
180 Rack/ Hour |
200 Rack/ Hour |
220 Rack/ Hour |
260 Rack/ Hour |
|
Max Washing Height (mm) |
420 |
420 |
420 |
420 |
420 |
420 |
420 |
420 |
|
Water Consumption
|
260-300 Litres/ Hour |
350-400 Litres/ Hour |
260-300 Litres/ Hour |
350-400 Litres/ Hour |
260-300 Litres/ Hour |
350-400 Litres/ Hour |
260-300 Litres/ Hour |
350-400 Litres/ Hour |
|
Inlet Water Pressure |
0.15 – 0.40 Mpa |
0.15 – 0.40 Mpa |
0.15 – 0.40 Mpa |
0.15 – 0.40 Mpa |
0.15 – 0.40 Mpa |
0.15 – 0.40 Mpa |
0.15 – 0.40 Mpa |
0.15 – 0.40 Mpa |
|
Washing Tank Capacity |
70 Litres |
90 Litres |
70 + 40 Litres |
180 Litres |
70 Litres |
90 Litres |
70 + 40 Litres |
180 Litres |
|
Booster Heater Capacity |
15 Litres |
15 Litres |
15 Litres |
15 Litres |
15 Litres |
15 Litres |
15 Litres |
15 Litres |
|
Diameter of Water Inlet Hose |
G3/4 inch (6分） |
G3/4 inch (6分） |
G3/4 inch (6分） |
G3/4 inch (6分） |
G3/4 inch (6分） |
G3/4 inch (6分） |
G3/4 inch (6分） |
G3/4 inch (6分） |
|
Diameter of Steam Enter Pipe |
G1 inch ( 1寸) (Steam) |
G1 inch ( 1寸) (Steam) |
G1 inch ( 1寸) (Steam) |
G1 inch ( 1寸) (Steam) |
G1 inch ( 1寸) (Steam) |
G1 inch ( 1寸) (Steam) |
G1 inch ( 1寸) (Steam) |
G1 inch ( 1寸) (Steam) |
|
Diameter of Steam Drain Pipe |
G3/4 inch (6分) (Steam) |
G3/4 inch (6分) (Steam) |
G3/4 inch (6分) (Steam) |
G3/4 inch (6分) (Steam) |
G3/4 inch (6分) (Steam) |
G3/4 inch (6分) (Steam) |
G3/4 inch (6分) (Steam) |
G3/4 inch (6分) (Steam) |
|
Power Requirements |
Three Phase_380V 50Hz |
Three Phase_380V 50Hz |
Three Phase_380V 50Hz |
Three Phase_380V 50Hz |
Three Phase_380V 50Hz |
Three Phase_380V 50Hz |
Three Phase_380V 50Hz |
Three Phase_380V 50Hz |
|
Inlet Water Hardness |
0.034-0.103 grams/Litre |
0.034-0.103 grams/Litre |
0.034-0.103 grams/Litre |
0.034-0.103 grams/Litre |
0.034-0.103 grams/Litre |
0.034-0.103 grams/Litre |
0.034-0.103 grams/Litre |
0.034-0.103 grams/Litre |
|
Inlet Water Temperature |
10 – 60 Celsius |
10 – 60 Celsius |
10 – 60 Celsius |
10 – 60 Celsius |
10 – 60 Celsius |
10 – 60 Celsius |
10 – 60 Celsius |
10 – 60 Celsius |
|
Wash Temperature |
55 – 60 Celsius |
55 – 60 Celsius |
55 – 60 Celsius |
55 – 60 Celsius |
55 – 60 Celsius |
55 – 60 Celsius |
55 – 60 Celsius |
55 – 60 Celsius |
|
Rinse Temperature |
82 Celsius |
82 Celsius |
82 Celsius |
82 Celsius |
82 Celsius |
82 Celsius |
82 Celsius |
82 Celsius |
|
Heating Mode |
50 kg / Hour (Steam) |
50 kg / Hour (Steam) |
50 kg / Hour (Steam) |
50 kg / Hour (Steam) |
50 kg / Hour (Steam) |
50 kg / Hour (Steam) |
50 kg / Hour (Steam) |
50 kg / Hour (Steam) |
|
Steam Entry Pressure |
0.3 – 0.4 Mpa (Steam) |
0.3 – 0.4 Mpa (Steam) |
0.3 – 0.4 Mpa (Steam) |
0.3 – 0.4 Mpa (Steam) |
0.3 – 0.4 Mpa (Steam) |
0.3 – 0.4 Mpa (Steam) |
0.3 – 0.4 Mpa (Steam) |
0.3 – 0.4 Mpa (Steam) |
|
Tank Heater Power |
9/15k kW (Electrical) |
9/15k kW (Electrical) |
15/21 kW (Electrical) |
18/24 kW (Electrical) |
9/15 kW (Electrical) |
9/15 kW (Electrical) |
15/21 kW (Electrical) |
18/24 kW (Electrical) |
|
Booster Heater Power |
36 kW (Electrical) |
36 kW (Electrical) |
36 kW (Electrical) |
36 kW (Electrical) |
36 kW (Electrical) |
36 kW (Electrical) |
36 kW (Electrical) |
36 kW (Electrical) |
|
Rinse Pump Power |
– |
0.11 kW |
– |
0.11 kW |
– |
0.11 kW |
– |
0.11 kW |
|
Washing Pump |
1.5 Kw |
1.5 Kw |
1.5 + 0.73 Kw |
1.5 * 2 = 3 Kw |
1.5 Kw |
1.5 Kw |
1.5 + 0.73 Kw |
1.5 * 2 = 3 Kw |
|
Dryer Fan Power |
–
|
– |
– |
–
|
0.55 kW |
0.55 kW |
0.55 kW
|
0.55 kW
|
|
Dryer Heater Power |
– |
– |
– |
– |
1.5*6 = 9 kW |
1.5*6 = 9 kW |
1.5*6 = 9 kW |
1.5*6 = 9 kW |
|
Motor Power |
0.37 kW |
0.18 kW |
0.37 kW |
0.18 kW |
0.37 kW |
0.18 kW |
0.37 kW |
0.18 kW |
|
Total Power |
47/53 kW (Electrical) |
47/53 kW (Electrical)
2 kW (Steam) |
54/60 kW (Electrical)
3 kW (Steam) |
57/63 kW (Electrical)
3 kW (Steam) |
57/63 kW (Electrical)
12 kW (Steam) |
56/62 kW (Electrical)
11 kW (Steam) |
64/70 kW (Electrical)
13 kW (Steam) |
67/73 kW (Electrical)
13 kW (Steam) |
