ADVANTAGES AND CHARACTERISTICS
- Selected high-quality stainless steel material, corrosion resistance, high strength, good toughness.
- 2 or 4 parallel rubber bands can be selected to slide on the surface of the stainless steel frame through the driving wheel to drive the trayto be transported.
- Imported food-grade cylindrical conveyor belt is used to ensure food hygiene, and there is a reinforced core made of fiber inside.
- The diameter of the transmission column is 15mm, and the tear resistance is ≥
- Using variable frequency speed regulating motor, the operating speed can be adjusted, and the flexible start and stop system is configured.
- The driving stick and conveying stick are made of stainless steel, which is easy to disassemble.
- The driving wheel and traction wheel are made of food-grade nylon.
- The length and height can be customized according to customer needs, and can be made into straight and turning types.

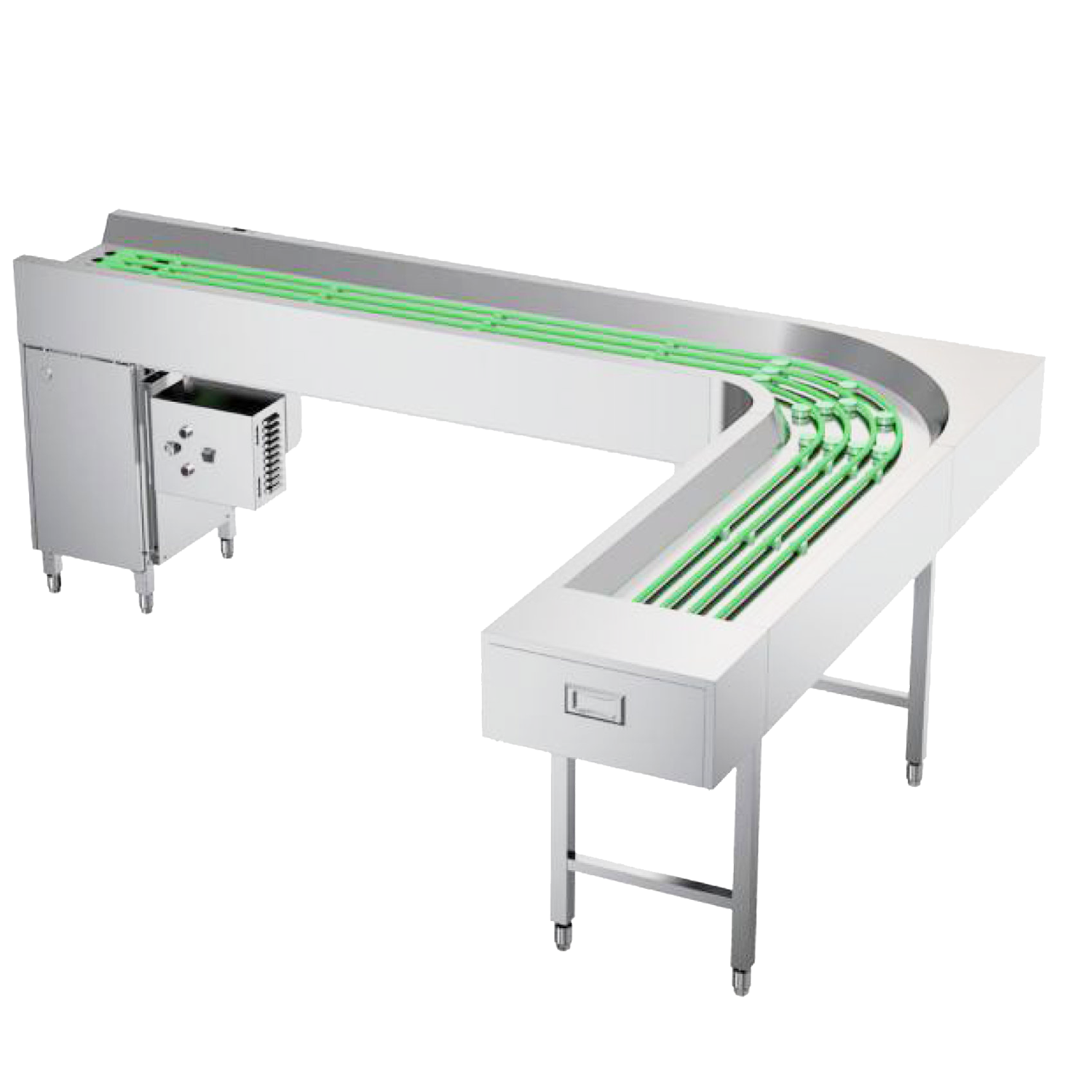

- It is mainly composed of stainless steel frame, imported food-grade rubber band conveyor belt, frequency conversion motor, and manual cleaning device.
- Terminology introduction: I: straight line type L: turn type U: turn type O: circular type (the corner can be arc-shaped or right-angled).
| CSS-RI | CSS-RL | |
|---|---|---|
|
External Dimension (Electrical) (mm) |
L*500*950 |
(L+L) * 500*950 |
|
Power Requirements |
220V 50Hz |
220V 50Hz |
|
Speed |
5 -15 Meter / Min |
5 -15 Meter / Min |
|
Total Power |
0.4 kW / 0.8 kW |
0.4 kW / 0.8 kW |
